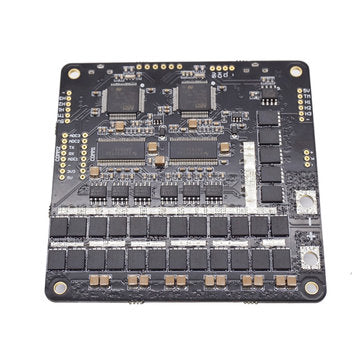

Flipsky Dual FSESC6.6 plus ESC Based on VESC6 Pro Switch for Electric Longboard RC Car/E-bike/E-scooter
Description:
Package included:
Item Brand:FLIPSKY
Item name:Dual FSESC6.6 plus Based on VESC6 Pro Switch
Color:As the picture shown
Size:78*78*20mm
For more detailed information,please click here
For more detailed information,please click here
Spec
- Hardware: V 6.6
- Firmware: VESC_default_no_hw_limits
- Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC
- Voltage spikes may not exceed 60V
- Current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current.
- 5V 1.5A output for external electronics for single
- 3.3V 1A output for external electronics for single
- Modes: DC, BLDC, FOC (sinusoidal)
- Supported sensors: ABI, HALL, AS5047
- include Aluminum Heatsink
Integrated anti-spark switch function in the PCBA
1. Power on/off by pressing the button
2. Added Can bus connector, be more convenient for 4WD set up
3. Changed the USB port soldering process to SMT soldering instead of manual soldering
Note:
Note:
DO NOT power on switch without the LED button connected.
Detected battery voltage tolerance: /-0.6V
1X Dual FSESC6.6 Plus Heatsink
1X 12mm LED button
2X VESC Sensor Wires
1X Micro USB
1X Manual
