EWRF FPV Dual Camera System 1000TVL CMOS Mini Two Cameras + 5.8Ghz 600mW 40CH VTX + 3CH Switch Support PMW for RC Racing Drone
Note: The switcher is blue color instead of green.
Features
Support 3 cameras(package includes 2 cameras)
Plug and play
Description
Model : Dual Camera Combo
Weight : 43.9g
Specification

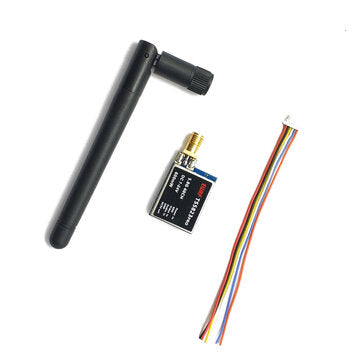

Transmitter
Model : TS5823
Power Supply : 7V-24V
VTX Power : 600mW
Frequency : 5.8Ghz
Channel : 40CH
Antenna Connector : RP-SMA
Working Current : 230mA@600mW 12V
Transmission Distance : 600mW=2km(in open area,with clover antenna)
Weight : 5g
Dimension : 30 x 20 x 8mm (without antenna port)

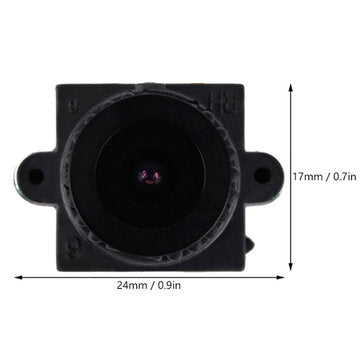

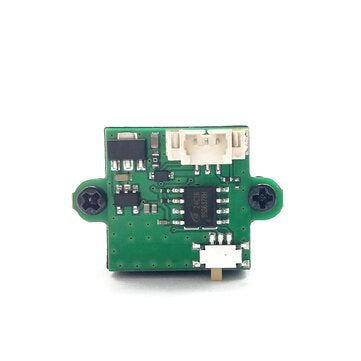

Camera
Material : ABS
Sensor : 1/3 CMOS
Resolution : 1000tvl
Focus : 2.8mm
Format : NTSC/PAL
White Balance : Auto
Back Light Compensation : ON/OFF
Synchronization : Inter-sync
Video out : 1.0Vp-p75Ω
Operating Voltage : DC12V FPV5-17V
Current : 70mA
Low RF interfernce and low power comsuption
Applicable models : QAV180,QAV210,QAV250...
Package Included
1 x Transmittre
2 x Camera
2 x Camera Mount

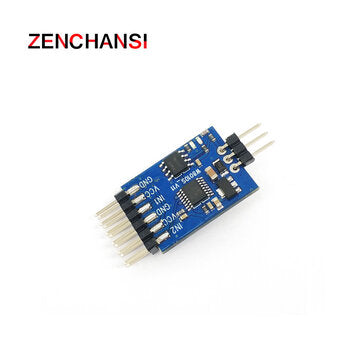

1 x Switcher
1 x Cable wires set
