DJI MINI 3 PRO 12KM FPV with 1/1.3
DJI MINI 3 PRO 12KM FPV with 1/1.3" 4K HDR Video True Vertical Shooting 34mins Flight Time 3D Obstacle Sensing 249g RC Drone Quadcopter RTF
Specifications:
Aircraft |
Takeoff Weight | < 249 g |
| Dimensions | Folded: 145×90×62 mm (L×W×H) Unfolded: 171×245×62 mm (L×W×H) Unfolded (with propellers): 251×362×70 mm (L×W×H) |
|
| Diagonal Distance (propellers excluded) | 247 mm | |
| Max Ascension Speed | 5 m/s (S Mode) 3 m/s (N Mode) 2 m/s (C Mode) |
|
| Max Descent Speed | 5 m/s (S Mode) 3 m/s (N Mode) 1.5 m/s (C Mode) |
|
Max Speed(near sea level, no wind) |
16 m/s (S Mode) 10 m/s (N Mode) 6 m/s (C Mode) |
|
| Max Service Ceiling Above Sea Level |
With Intelligent Flight Battery: 4000 m With Intelligent Flight Battery Plus: 3000 m |
|
| Max Flying Time |
34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions) 47 mins (with Intelligent Flight Battery Plus and measured while flying at 21.6 kph in windless conditions). Only available in select countries. |
|
| Max Hovering Time |
30 mins (with Intelligent Flight Battery, no wind) 40 mins (with Intelligent Flight Battery Plus, no wind) |
|
| Max Flying Distance |
18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions) 25 km (with Intelligent Flight Battery Plus and measured while flying at 43.2 kph in windless conditions) |
|
| Max Wind Speed Resistance | 10.7 m/s (Scale 5) | |
| Max Tilt Angle | Forward: 40°, Backward: 35° (S Mode) |
|
| Max Angular Vellocity |
130°/s (S Mode) *Can be adjusted between 20°/s and 250°/s in the app *Can be adjusted between 20°/s and 120°/s in the app *Can be adjusted between 20°/s and 60°/s in the app |
|
| Operating Temperature |
-10° to 40°C | |
| Operating Frequency | 2.400-2.4835 GHz, 5.725-5.850 GHz | |
| Transmitter Power (EIRP) |
2.4 GHZ: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHZ: <26 dBm (FCC/SRRC), <14 dBm (CE) |
|
| GNSS |
GPS GALILEO BeiDou |
|
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GNSS Positioning) Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with High-precision Positioning System) |
|
Gimbal |
Mechanical Range | Tilt: -135° to 80° Roll: -135° to 45° Pan: -30° to 30° |
| Controllable Range |
Tilt: -90° to 60° Roll: -90° or 0° |
|
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) | |
| Max Control Speed (tilt) | 100°/s | |
| Angular Vibration Range | ±0.01° | |
Sensing System |
Forward |
Precision Measurement Range: 0.39-25 m Effective Sensing Speed: Flight speed <10 m/s |
|
Backward |
Precision Measurement Range: 0.36-23.4 m Effective Sensing Speed: Flight speed <10 m/s |
|
|
Downward |
Precision Measurement Range: 0.15-9 m Precise Hovering Range: 0.5-12 m Effective Sensing Speed: Flight speed <3 m/s |
|
|
Auxiliary Bottom Light |
N/A |
|
| Operating Environment |
Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement) Adequate lighting (lux >15, e.g. , normal exposure environment with indoor fluorescent lamp) |
|
Camera |
Sensor | 1/1.3-inch CMOS Effective Pixels: 48 MP |
| Lens | FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus Range: 1 m to ∞ |
|
| ISO Range |
Video: 100-6400 (Manual) |
|
| Shutter Speed | Electronic Shutter: 2-1/8000s | |
| Max Image Size | 4:3: 8064×6048 (48MP), 4032x3024 (12MP) 16:9: 4032×2268 (12MP) |
|
| Still Photography Modes |
Single shot JPEG RAW: 2/3/5/7/10/15/20/30/60 s |
|
| Video Resolution |
4K: 3840×2160@24/25/30/48/50/60fps 2.7K: 2720×1530@24/25/30/48/50/60fps FHD: 1920×1080@24/25/30/48/50/60fps Slow Motion: 1920×1080@120fps |
|
| Max Video Bitrate | 150 Mbps | |
| Zoom Range |
4K: 2x 2.7K: 3x FHD: 4x |
|
| QuickShot Modes |
Dronie, Hellix, Rocket, Circle, Boomerrang, and Asteroid |
|
| Supported File Systems | FAT32 (≤32 GB) exFAT (>32 GB) |
|
|
Color Profiles |
Normal D-Cinelike |
|
|
HDR Mode |
Photo: HDR supported in Single Shot mode Video: HDR supported when shooting at 24/25/30fps |
|
| Photo Format | JPEG/DNG | |
| Video Format | MP4/MOV (H.264/H.265) | |
Video Transmission |
Video Transmission System |
DJI O3 |
|
Live View Quality |
1080p/30fps |
|
|
Operation Frequency |
2.400-2.4835 GHz 5.725-5.850 GHz |
|
|
Transmitter Power (EIRP) |
2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) |
|
|
Communication Bandwidth |
1.4MHz/3MHz/10MHz/20MHz/40MHz |
|
|
Latency (depending on environmental conditions and mobile device) |
Aircraft Remote Controller: Approx. 120 ms |
|
|
Max Video Bitrate |
Aircraft Remote Controller: 18 Mbps |
|
|
Max Download Bitrate |
DJI O3: RC-N1 Remote Controller and DJI RC: 5.5 MB/s |
|
|
Signal Transmission Ranges (FCC) |
Strong Interference (urban landscape): Approx. 1.5-3 km Medium Interference (suburban landscape): Approx. 3-7 km |
|
|
Antennas |
4 antennas, 1T2R |
|
|
Audio Transmission |
N/A |
|
Wi-Fi & Bluetooth |
Protocol |
802.11 a/b/g/n/ac |
|
Transmitter Power (EIRP) |
2.400-2.4835 GHz: ＜19 dBm (FCC/CE/SRRC/MIC) 5.725-5.850 GHz: ＜20 dBm (FCC/SRRC), ＜14 dBm (CE) |
|
|
Protocol |
Bluetooth 5.2 |
|
|
Transmitter Power (EIRP) |
2.400-2.4835 GHz: ＜8 dBm |
|
Charging Hub |
Compatible DJI Charger |
DJI 30W USB-C Charger or other USB Power Delivery Chargers |
|
Compatible DJI Batteries |
DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus |
|
|
Input |
5 V, 3 A 9 V, 3 A 12 V, 3 A |
|
| Output (USB) | Max Voltage: 5 V, Max Current: 2 A | |
| Charging Type | Three batteries being charged in seequence | |
| APP | Name | DJI Fly |
| Required Operating System | iOS v10.0 or later Android v6.0 or later | |
| Supported SD Cards | Supported SD Cards |
UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below |
Battery:
| Item |
Intelligent Flight Battery |
Intelligent Flight Battery Plus |
|
Capacity |
2453 mAh |
3850 mAh |
|
Weight |
Approx. 80.5 g |
Approx. 121 g |
|
Voltage |
7.38 V |
7.38 V |
|
Charging Voltage Limit |
8.5 V |
8.5 V |
|
Battery Type |
Li-ion |
Li-ion |
|
Energy |
18.1 Wh |
28.4 Wh |
|
Max Charging Power |
37 W |
58 W |
|
Charging Time |
64 mins (with DJI 30W USB-C Charger) |
101 mins (with DJI 30W USB-C Charger) |
|
Charging Temperature Range |
5° to 40° C (41° to 104° F) |
5° to 40° C (41° to 104° F) |
|
Recommended Charger |
DJI 30W USB-C Charger or other USB Power Delivery Chargers |
DJI 30W USB-C Charger or other USB Power Delivery Chargers |
Remote Controller:
| Item |
DJI RC-N1 |
DJI RC |
|
Model |
RC-N1 |
RM330 |
|
Video Transmission System |
DJI O3 |
DJI O3 |
|
Transmitter Power (EIRP) |
2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE) |
2.400-2.4835 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE) |
|
Storage Capacity |
DJI RC's storage capacity can be increased by using a microSD card. Users can store images and videos on the card and export them to a computer or other devices. |
|
|
Video Output Port |
N/A |
|
|
Max Battery Life |
6 hrs (without charging any mobile device) 4 hrs (when charging a mobile device) |
Approx. 4 hours |
|
Operating Temperature |
-10° to 40° C (14° to 104° F) |
-10° to 40° C (14° to 104° F) |
|
Max Supported Mobile Device Size |
Length: 180 mm, Width: 86 mm, Height: 10 mm |
|
|
Supported Port Types |
Lighting, Micro-USB (Type-B), USB-C |
|
|
Supported SD Cards |
UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below. |
|
|
Wi-Fi Protocol |
802.11 a/b/g/n |
|
|
Wi-Fi Transmitter Power (EIRP) |
2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC) |
|
|
Bluetooth Protocol |
Bluetooth 4.2 |
|
|
Bluetooth Transmitter Power (EIRP) |
2.400-2.4835 GHz: <10 dBm |
Features:
- Weighs Less than 249 g
- Tri-Directional Obstacle Sensing (Forward/Backward/Downward)
- Record Up to 4K/60fps Video and 4K/30fps HDR Video
- 34-min Max Flying Time
- True Vertical Shooting
- FocusTrack (ActiveTrack, Spotlight, and Point of Interest)
- MasterShots
- Timelapse
Package Included:

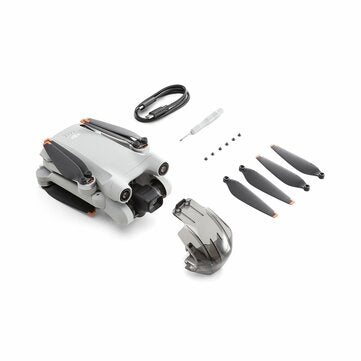

MINI 3 PRO (NO RC)
1 x MINI 3 Pro
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
1 x Type-C PD Cable
1 x Gimbal Protector
6 x Spare Screw
1 x Screwdriver

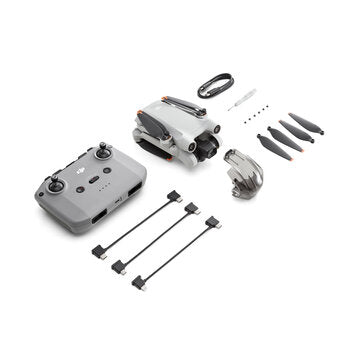

MINI 3 PRO (RC-N1)
1 x MINI 3 Pro
1 x DJI RC-N1 Remote Controller
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
3 x RC Cable (USB/USB-C/Lighting/)
1 x Type-C PD Cable
1 x Gimbal Protector
6 x Spare Screw
1 x Screwdriver

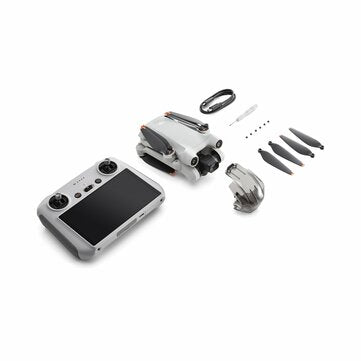

MINI 3 PRO (DJI RC)
1 x MINI 3 Pro
1 x DJI RC
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
1 x Type-C PD Cable
1 x Gimbal Protector
6 x Spare Screw
1 x Screwdriver
